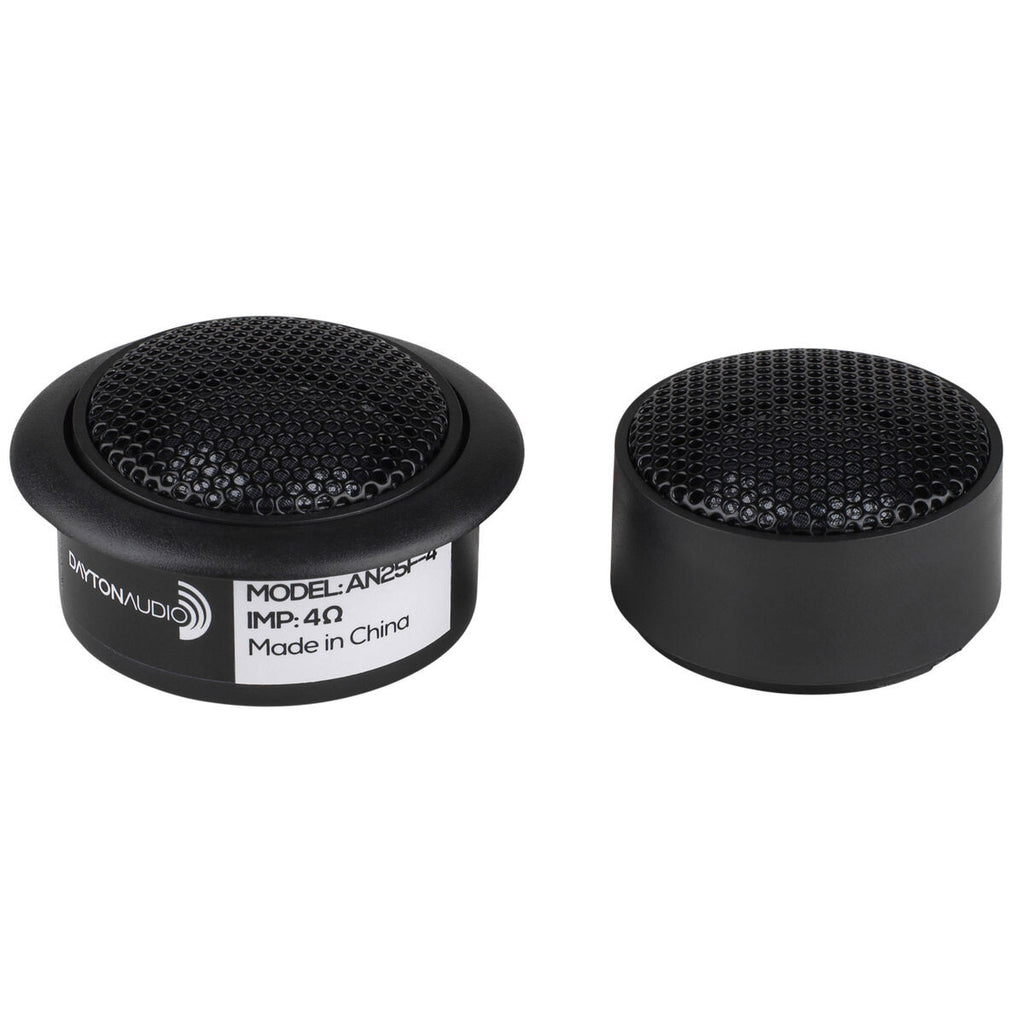

Dayton Audio AN25F-4 1" Soft Dome Neodymium Car Audio Tweeter Pair 4 Ohm
Dayton Audio designed the AN25F-4 tweeter to provide superb audio reproduction. The silk diaphragm offers remarkable clarity, great off-axis dispersion and an exceptionally flat response above 3 kHz. Although these tweeters where specifically designed for car audio systems, their modern appearance, high efficiency, and flat response curve integrate easily into many non-automotive designs and are especially useful in MTM and TMM designs where high efficiency and/or minimal center-to-center spacing of the tweeter and woofer placement is needed. Sold in pairs.
Specifications: • Power handling: 40 watts RMS/80 watts max (with appropriate crossover) • VCdia: 1" • Impedance: 4 ohms • Re: 3.0 ohms • Frequency range: 3,000-20,000 Hz • Fs: 1619 Hz • SPL: 96 dB @2.83V/1m.
